SSIC+G Sliding Bushing Sleeve for Low Thermal Expansion Applications
| محل منبع | چین |
|---|---|
| نام تجاری | CSQ |
| گواهی | FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001 |
| شماره مدل | محصولات سفارشی |
| مقدار حداقل تعداد سفارش | 20-50 کامپیوتر |
| قیمت | negotiable |
| جزئیات بسته بندی | فوم+جعبه کارتن |
| زمان تحویل | 20-45 روز کاری |
| شرایط پرداخت | T/T |
| قابلیت ارائه | 2000pcs در هر ماه |
برای نمونه و کوپن رایگان با من تماس بگیرید.
واتس اپ:0086 18588475571
ویچت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| نام | بلبرینگ کشویی سرامیکی سفارشی | دسته بندی | بلبرینگ کشویی سرامیکی |
|---|---|---|---|
| مواد | SSIC+G | اندازه | مطابق نقشه ها سفارشی شده است |
| برنامه | پمپ | بسته | فوم+جعبه کارتن |
| کیفیت | با دقت بالا ، عمر طولانی ، OEM Serive | مشخصات | اندازه استاندارد و سفارشی |
| برجسته کردن | 2800 HV5 Hardness SSIC Sliding Bushing Sleeve,410 GPa Elastic Modulus Ceramic Sliding Bearing,Low Thermal Expansion Silicon Carbide Ceramic Bearing,410 GPa Elastic Modulus Ceramic Sliding Bearing,Low Thermal Expansion Silicon Carbide Ceramic Bearing |
||
توضیحات محصول

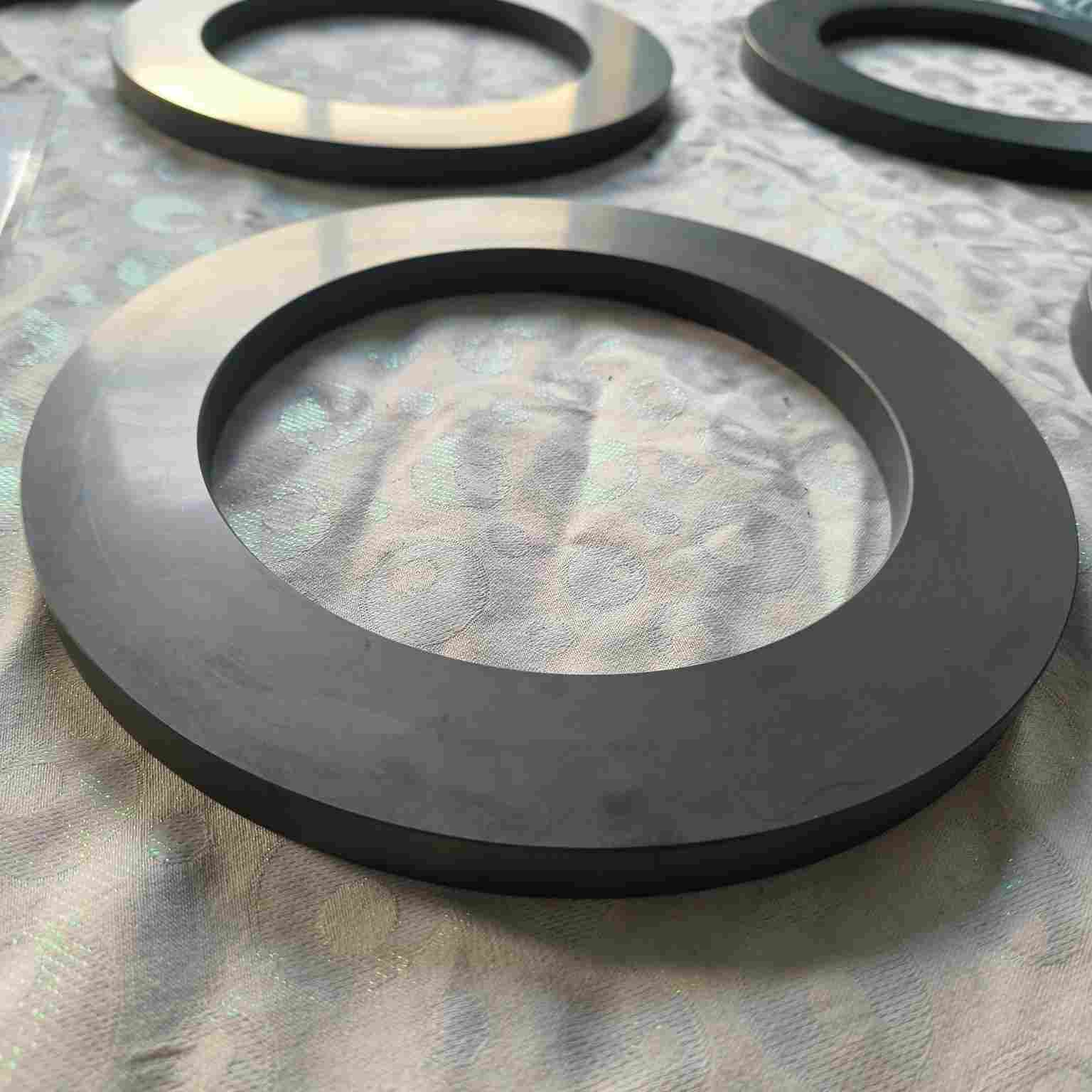

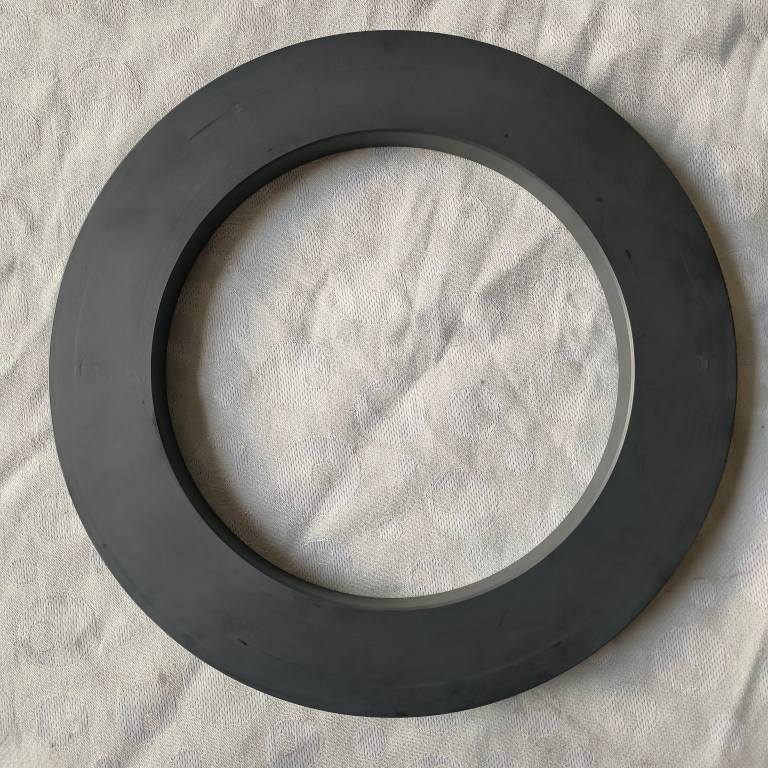

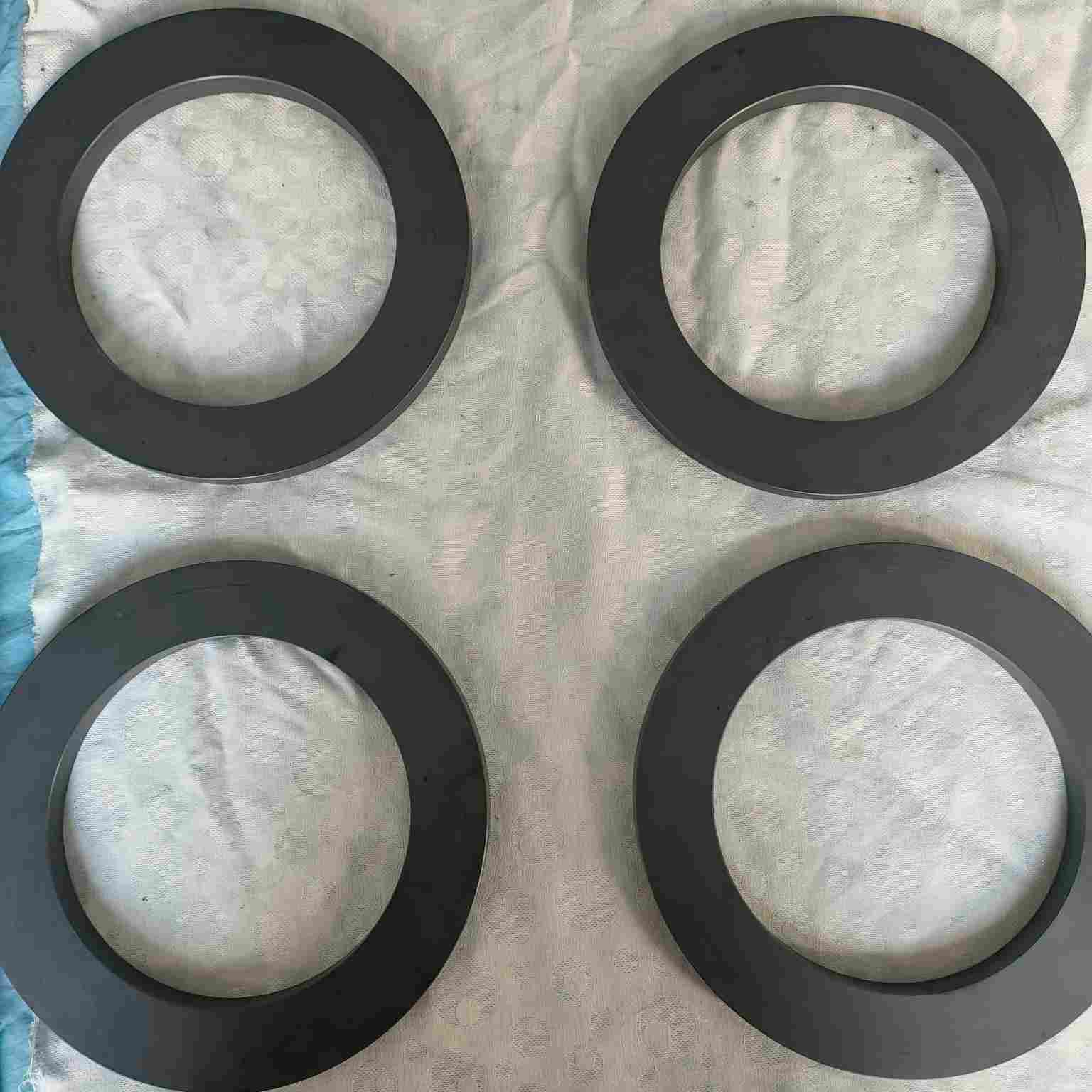

SSIC+G Sliding Bushing Sleeve for High Hardness Applications
Silicon Carbide (SiC) sleeves are precision-engineered ceramic components offering exceptional wear resistance, corrosion resistance, high hardness, and thermal stability. Ideal for bearings, seals, and transmission systems in demanding applications across chemical processing, machinery, semiconductor, and energy industries.
Key Features
- Superior Hardness & Wear Resistance: Mohs hardness of 9.5 (second only to diamond) ensures extended service life
- Excellent Corrosion Resistance: Withstands strong acids, alkalis, and organic solvents
- High-Temperature Stability: Maintains performance up to 1400°C without oxidation or deformation
- Low Thermal Expansion: High thermal conductivity and thermal shock resistance for rapid temperature cycling
- Self-Lubricating: Low friction coefficient reduces energy consumption and maintenance
Applications
- Chemical Industry: Pumps, valves, reactor seals
- Machinery: High-speed bearings, precision components
- Semiconductors: Wafer handling fixtures
- New Energy: Photovoltaic and lithium battery production equipment
Technical Properties
| Property | Value |
|---|---|
| Max Temperature | up to 1650℃ |
| Density | 3.15-3.18 g/cm³ |
| Thermal Expansion | 4.0 (10⁻⁶/℃) |
| Thermal Conductivity | 120 W/m°K |
| Hardness | 2800 HV5 |
| Elastic Modulus | 410GPa |
| Chemical Stability | Superior resistance to acid and alkali corrosion (including hydrofluoric acid) |
Advantages vs. Steel Bearings
- Higher Temperature Resistance: Superior mechanical stability at elevated temperatures
- Better Thermal Cycling Performance: Minimal clearance changes under temperature fluctuations
- Anti-Seizure Properties: Reduced thermal deformation minimizes friction-induced binding
- Oil-Free Operation: Self-lubricating properties enable reliable performance in high-vacuum environments
- Exceptional Corrosion Resistance: Impervious to acids, alkalis, and salts
- Electrical Insulation: Non-conductive, eliminating static discharge
- Non-Magnetic: Prevents magnetic particle adhesion in sensitive environments
Our Manufacturing Capabilities
With three factories in China equipped with advanced pressing, sintering and processing machines, we meet diverse customer needs under our ZXSQ and CSQ brands. Holding eleven invention patents, our professional team delivers high-quality ceramic bearing solutions.
40+ Years of Expertise
Since 1982, we've continuously improved materials, processing techniques, and equipment, becoming a leader in China's ceramic bearing market. We have extensive experience producing silicon carbide sliding bearings, including supplying SSiC bearings to Germany's Witte for many years.
Our Service Advantages
- Free sample bearings available
- ISO Standard compliant
- In-stock bearings ready for immediate shipment
- Small order quantities accepted
- OEM bearing services
- Customized bearings based on your drawings or samples
- Competitive factory pricing
Frequently Asked Questions
Who are we?
We are a factory in Beijing, China with over 40 years of experience producing ceramic bearings, having established cooperative relationships with many domestic and international companies.
How do we guarantee quality?
We produce samples before mass production and strictly follow customer requirements. Our quality control includes precise inspection using specialized equipment, with foam and carton packaging for double protection.
What products do we offer?
We provide ceramic deep groove ball bearings, angular contact ball bearings, hybrid ceramic ball bearings, linear bearings, and various ceramic balls.
Why choose us over other suppliers?
As an integrated company with three factories and modern production equipment, we offer better delivery times and product quality at competitive prices.
What services do we provide?
We offer high-quality products, full customization, and sample confirmation services to meet your specific requirements.
Ready to Partner With Us?
We maintain strong relationships with raw material suppliers to ensure consistent quality and stable pricing. Customer satisfaction is our priority - we provide excellent products and after-sales service, creating value as your trusted partner. Contact us today to discuss potential cooperation!
